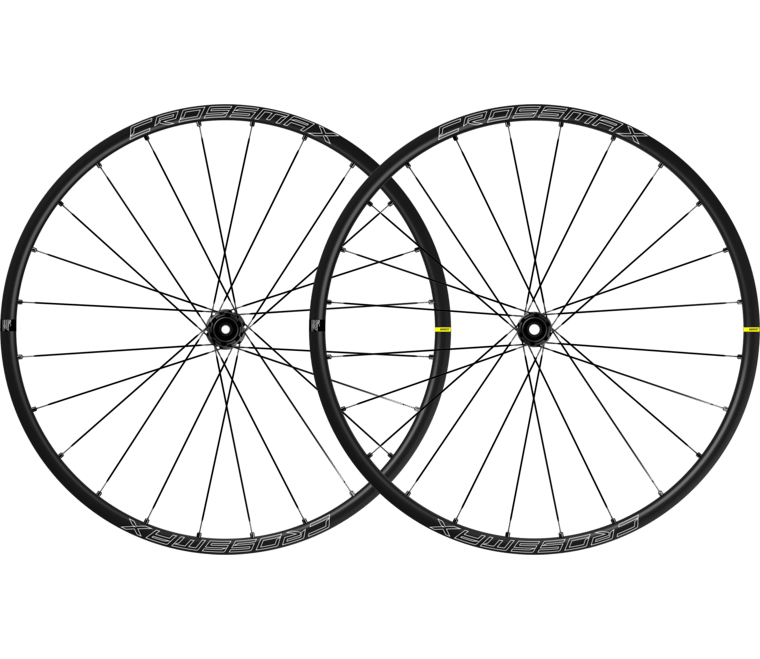

Mavic Crossmax SL 29″ Hjulsett Boost XD boss

SPECIFICATIONS



Rims
Material: Maxtal
Material: S6000 Aluminum
Tire: UST Tubeless and tubetype
Internal width: 25 mm
ETRTO size 29″: 622x25TSS
Hookless profile
Black Shield treatment (protects your rim against impacts and scratches)
Asymmetrical rim design
Fore
SUP



Spokes
Material: steel
Shape: straight pull, flat, double butted
Nipples: Fore integrated aluminum
Count: 24 front and rear
Lacing: front and rear crossed 2, contactless



Hubs
Hub available with 6-bolt or center lock (R) brake rotors
Axles: Front 15X110 Boost ; Rear 12X148 Boost
Infinity Hub
Instant Drive 360



Versions
Disc standard : 6 Bolts or Center Lock (R)
Hub width : Boost only (front 110, rear 148)
Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline



Compatibility
Freewheel: Shimano HG9, XD or Micro Spline
Rear axle: 12×148 Boost thru axle
Front axle: 15×110 Boost thru axle



Compatible Adapters and freewheel bodies
Boost : Torque Caps (LV2374400)
ID360 Shimano HG9 alloy freewheel body (LV3780100)
ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
ID360 Sram XD freewheel body (LV3740100)



Intended use
ASTM CATEGORY 3 : CROSS COUNTRY
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn’t exceed 120kg, bike included
Recommended tyre sizes: 50mm to 76mm (2.0″ to 3.0″)



Delivered with
UST valve and accessories
Multifonction adjustment wrench (delivered with rear wheel)
2 replacement spokes with each wheel
Fore adjustment wrench

!!
