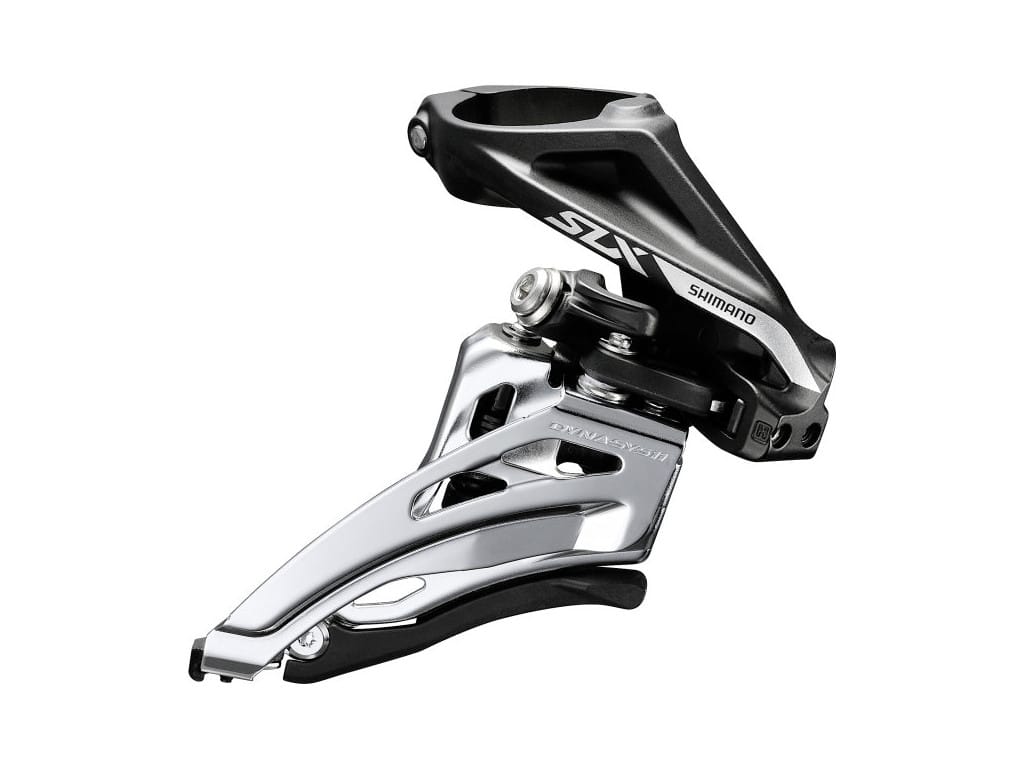

MODEL NO | FD-M7020-11-H |
---|---|
SERIES | SLX M7000 Series |
Color | Series color |
Average weight | 147 g |
Remarks | * S-size adapter is available in OTC package only. |
---|---|
Action_SIDE SWING | ✔ |
Angled clamp band design | ✔ |
Angled stroke adjust bolt | ✔ |
Cable route type_Front-Pull | ✔ |
Chain line (mm) | 48.8 |
Chain stay angle (deg.) | 66-69 |
Compatible chain | HG-X11 |
Link bushings | 4 |
Mount_Clamp Band (mm)_28.6 | -* |
Mount_Clamp Band (mm)_31.8 | X (w/ M size adapter) |
Mount_Clamp Band (mm)_34.9 | ✔ |
Speeds_Front | 2 |
Speeds_Rear | 11 |
Top gear teeth | 34-38T |
Total capacity | 10T |
