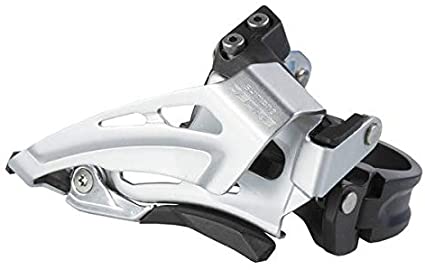

MODEL NO | FD-M618-L |
---|---|
SERIES | DEORE M610 Series |
Color | Black |
Action_TOP SWING | ✔ |
Angled clamp band design | ✔ |
---|---|
Angled stroke adjust bolt | ✔ |
Cable route type_Down-Pull exclusive | ✔ |
Chain line (mm) | 48.8 |
Chain stay angle (deg.) | 66-69 |
Compatible chain | HG-X 10-speed |
Link bushings | 2 |
Mount_Clamp Band (mm)_28.6 | X (w/ S size adapter) |
Mount_Clamp Band (mm)_31.8 | X (w/ M size adapter) |
Mount_Clamp Band (mm)_34.9 | ✔ |
Speeds_Front | 2 |
Speeds_Rear | 10 |
Top gear teeth | 36-38T |
Total capacity | 14T |
